YERO SHADE 200 Motoirsed Shutter shade

Shutters

Model Number: YS 200

CALL NOW & Let it ring FIVE times to get answered... we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping

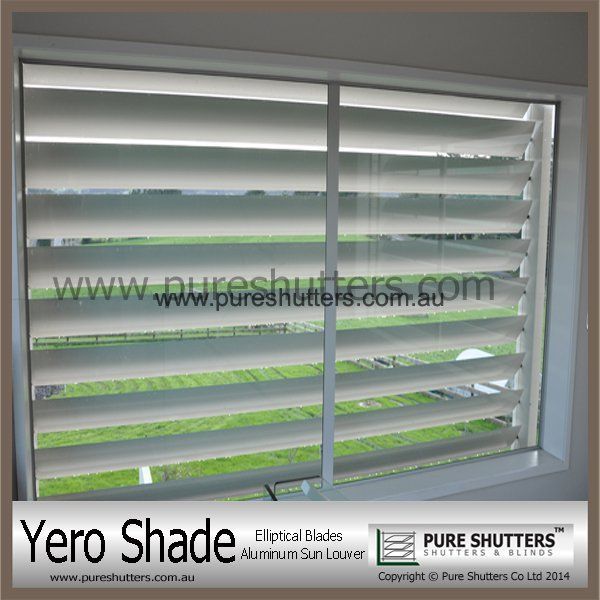

Yero Shade 200mm electrically operated or motorised Shutter shade for exterior or external usage for privacy and shading.

YERO SHADE-Aerofoil blade, Aluminum Motorized Shutter shade

BLADE END PLATES:
Aluminium Alloy, AL6063, Durable, Coated Blade Colors to match.
BLADE SIZES: 115mm, 150mm, 200mm, 300mm
Aluminium Alloy: AL6063 T6 or T5, or Powder Coated Natural anodise Finishings.
Aluminium Frame size: 97x40
Extruded from 6063,
Manufactured to AS / NZS 1866
Powder coating and Natural anodise Finishings
in align with AS3715: 2002 and AS1231: 2000
Other componentries:
Stainless Steel grade 304 Screws, Plastic Bushes, Washers & Clips

Standard Color finishes:
Powder Coat> 60 micron - Standard White Satin, Black Satin
Natural Anodised> 18 mircon
Custom made finishes Available upon Request
A. YERO SHADE VERTICAL-200mm Aero blade type (Looking from inside to outside):
B. MANUALLY OPERABLE OR MOTORISED, COMPLETE WITH OUTSIDE FRAME:
C. YERO SHADE or YERO ACCENT SHUTTERS
- REMOTE CONTROLLED OR WITH WALL SWITCH, COMPLETE WITH MOTOR CONTROL UNIT and Optional Rain sensor:
D. YERO SHADE CAN BE IN KNOCK DOWN, SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL SIZE AND IF ABLE TO FIT THE 20 'or 40' CONTAINER
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: YS 200
  • Material: Aluminum Alloy
  • Opening Pattern: Vertical
  • Blade Type: Aerofoil shape
  • Blade End plates: Aluminium
  • Blade sizes: 115mm,150mm,200mm,300mm
  • Blade Material: Aluminium Alloy AL6063 T5
  • Operation: Manually operable or Remote controlled
  • Optional accessories: Rain sensors
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
