Aluminium Outdoor Patio louver motorized opening roof

Also called:

Roof louvers

Aluminum opening roofs

Motorized Opening Roofs

Outdoor Patio roofing

Aluminium motorized Opening Roof

Aluminium Patio Louver Opening roof



BLADE END PLATES :

Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.



BLADE SIZES : 188mm

Aluminium alloy : AL6063 T5 or T6 , Manufactured to AS/NZS 1866 and GB5237

Powder Coating finishings to AS3712:2002 and AAMA 2603-05 & AAMA 2604-05

Wind Design Tested to NZS 3604

PS1 for NEW ZEALAND - Available upon request



YERO BEAM : 215 x 55 mm

Aluminium Alloy : AL6063 T5 or T6 , Manufactured to AS/NZS 1866 and GB5237

Powder coated finishings to AS3715:2002 , AAMA 2603-05 & 2604-045

Wind Design Tested to NZS 3604

PS1 for NEW ZEALAND - Available upon request



Complete with Gutter and Corner spout  for downpipe



Other componentries :

Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips



Standard Color finishes :

Powder coat >60 micron - Standard White Satin ,Grey Colors

Custom made colors available upon request

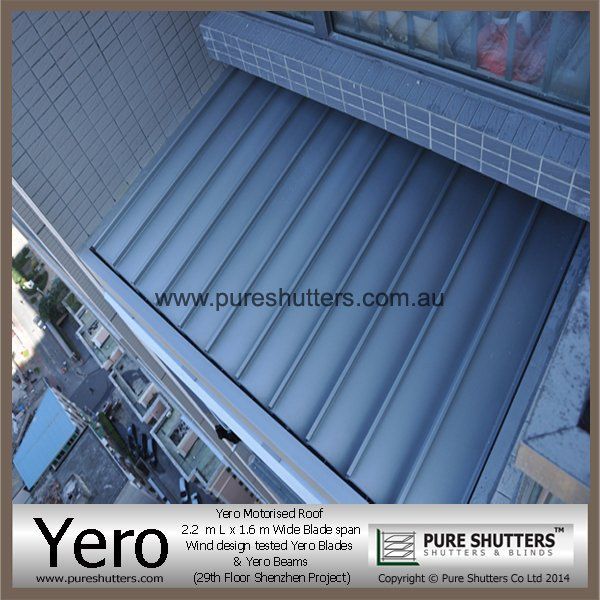

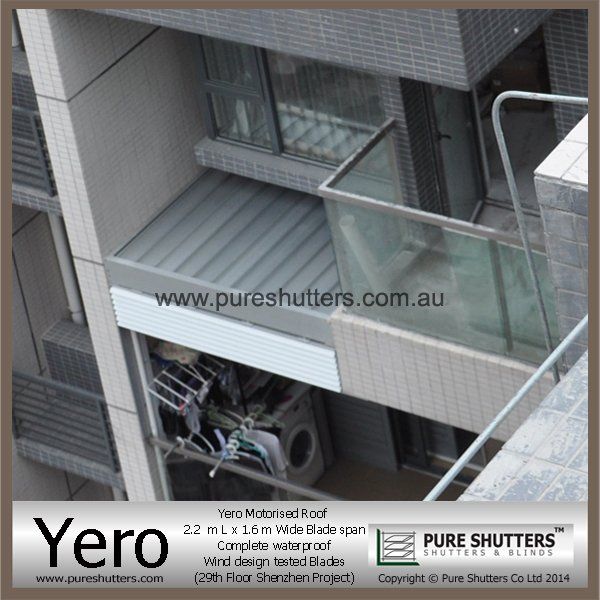

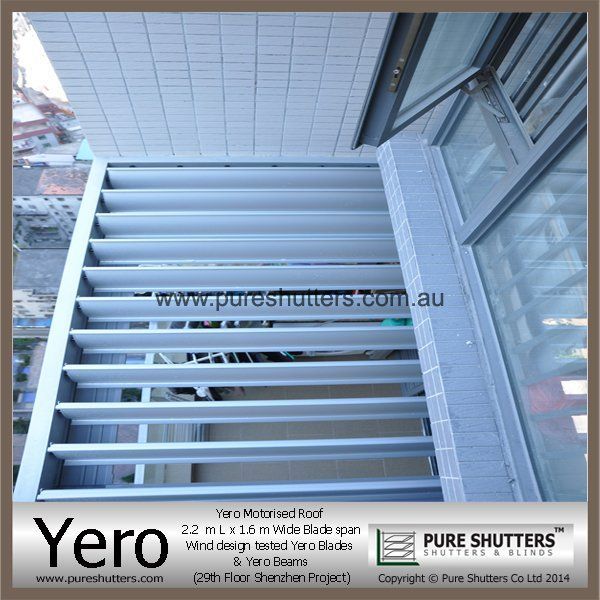

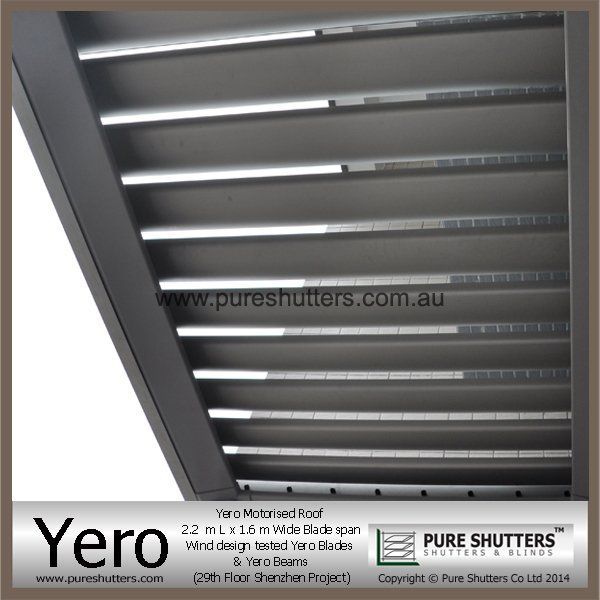

A. Aluminium Outdoor Patio louver motorized opening roof with built-in Electric motor



B. Remote control or Wall switch control or both .



C. Complete Waterproof  with Optional Rain sensor.



D. Complete with Gutter and Rain spout for down pipe



E. Wind Design Tested to NZS 3604



F. MOTORISED OPENING ROOF SUPPLIED IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL REQUIRED SIZE AND IF ABLE TO FIT INTO 20' or 40' CONTAINER
