Celos 152mm Jalousie Window shade

Shutters

Model Number: CELOS JWS152

CALL NOW & Let it ring FIVE times to get answered... we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping
Jalousie window shade with blade holders for 152mm wide Aluminium, Glass or Timber blades. Operable Handle to adjust blades

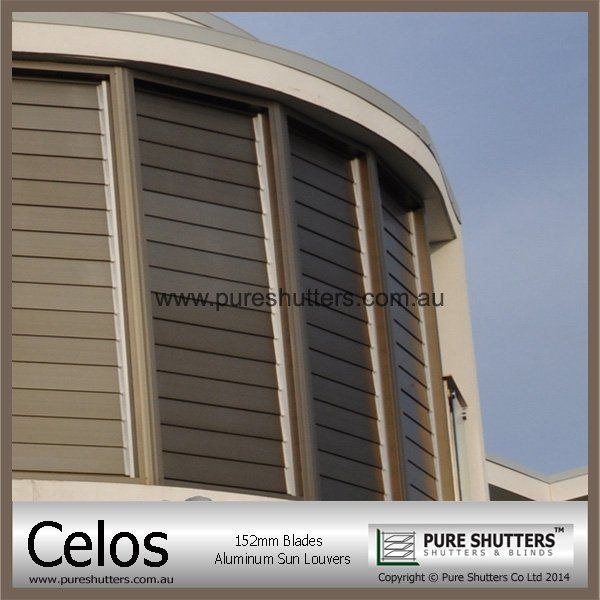

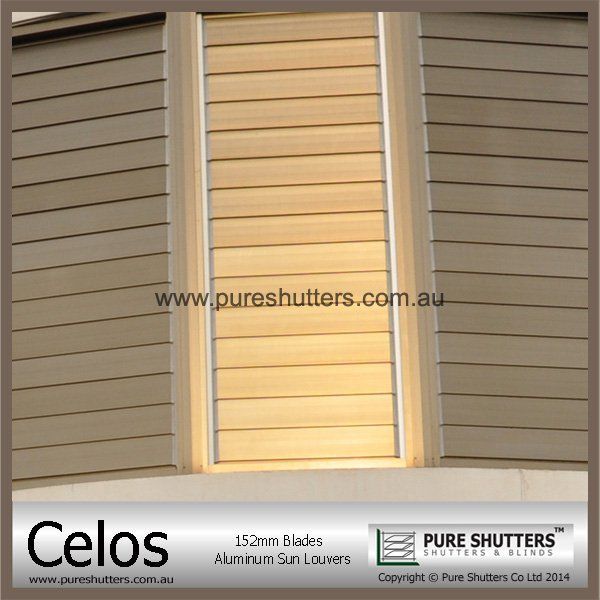

Celos 152mm Aluminum Jalousie Window Shades

Product Description

BLADE END CAPS :
UV resistant , CUSTOM MADE "PE ALLOY"

BLADE HANDLE 110mm :
UV resistant , CUSTOM MADE "NYLON ALLOY"

No.of Blades per Handle  : Minimum Two blades, Maximum Nine Blades

Aluminium U Channel 38x20 mm & Cross Bar handle :
Extruded from 6063,
Manufactured to AS/NZS 1866
Powder coating and Natural anodise finishings
in align with AS3715:2002 and AS1231:2000

Other componentries :
Stainless steel grade 304 Screws,Washer ,Rivet & Clips
Aluminium Bolts or Brass Bolts(optional)

Blades :
6mm Aluminium Hollow blades
6 to 6.38mm Toughened & Laminated Glass
Timber : Available upon request

Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request

RHS Frames (Optional) :
RHS supplied by others or available upon request

U Channel Assembly into frame :
Pre-punched holes on U Channel for ease of
screwing into frame

304 Grade Stainless steel Screws

Blade Cutting Deductions : U to U Channel WIDTH less 55mm
Tolerance +/-1mm, Depends on how tight when operating
the blade handle .

A. CELOS MOUNTED INTO OUTSIDE FRAMES :

Features:
 -CELOS SPECIAL PLASTIC ALLOY BLADE END CAPS AND HANDLE
-VARIABLE PLASTIC HANDLE LOCATIONS AND ADJUSTABLE BLADE ANGLES
- FOR NATURAL LIGHT REFLECTION , AIR VENTILATION , PRIVACY OR VIEWING ANGLE
-CELOS LOCKABLE HANDLE FOR SECURITY PURPOSES AND WATER TIGHT
- CELOS WITH SELF DRAINING BLADE END CAPS THAT KEEPS RAIN WATER AWAY
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: CELOS JWS152
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Blade Type: Flat 152mm x 6mm
  • Blade End Caps: Special Plastic Alloy
  • Blade Material: Aluminium Alloy 152mmx5mm
  • Blade optional material 1: Glass 152 x 6.3mm
  • Blade optional material 2: Timber -Custom made
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
