Celos 152mm Aluminium Shutter

Celos Shutter with blade holders suited for 152mm wide Aluminium , Glass or Timber blades. Operable Handle to adjust blade angle



BLADE END CAPS :

UV resistant , CUSTOM MADE "PE ALLOY"

BLADE HANDLE 110mm :

UV resistant , CUSTOM MADE "NYLON ALLOY"



No.of Blades per Handle  : Minimum Two blades, Maximum Nine Blades

Aluminium U Channel 38x20 mm & Cross Bar handle :

Extruded from 6063,

Manufactured to AS/NZS 1866

Powder coating and Natural anodise finishings

in align with AS3715:2002 and AS1231:2000

Other componentries :

Stainless steel grade 304 Screws,Washer ,Rivet & Clips

Aluminium Bolts or Brass Bolts(optional)

Blades :

6mm Aluminium Hollow blades

6 to 6.38mm Toughened & Laminated Glass

Timber : Available upon request

Standard Color finishes :

Powder coat >60 micron - Standard White Satin , Black Satin

Natural Anodised >18 mircon

Custom made finishes available upon request

RHS Frames (Optional) :

RHS supplied by others or available upon request

U Channel Assembly into frame :

Pre-punched holes on U Channel for ease of

screwing into frame



304 Grade Stainless steel Screws

Blade Cutting Deductions : U to U Channel WIDTH less 55mm

Tolerance +/-1mm, Depends on how tight when operating

the blade handle .

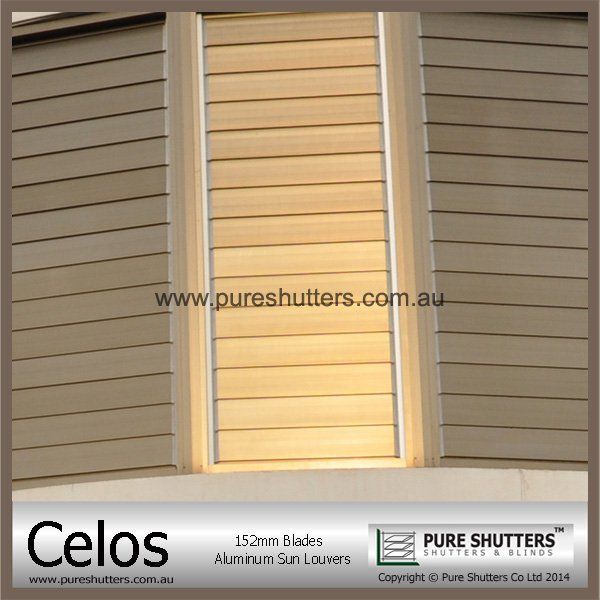

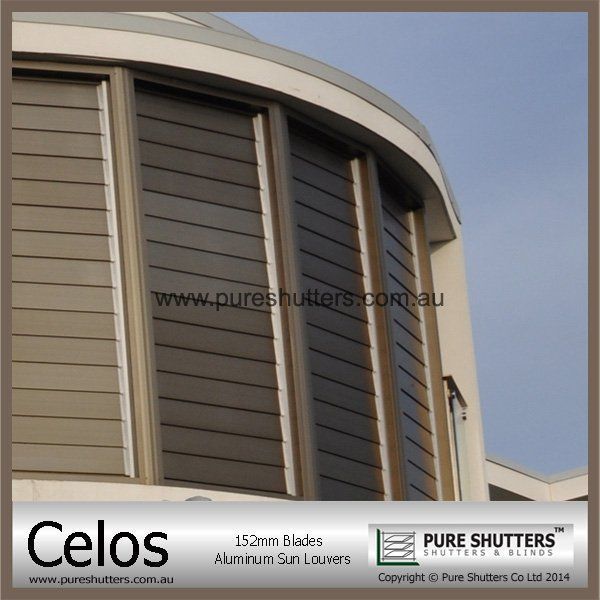

A. CELOS MOUNTED INTO OUTSIDE FRAMES :



B. CELOS ACCENT SHUTTERS

With SPECIAL PLASTIC ALLOY BLADE END CAPS AND HANDLE



C. VARIABLE PLASTIC HANDLE LOCATIONS AND ADJUSTABLE BLADE ANGLES

FOR NATURAL LIGHT REFLECTION , AIR VENTILATION , PRIVACY OR VIEWING ANGLE:



D. CELOS LOCKABLE HANDLE FOR SECURITY PURPOSES AND WATER TIGHT :



E. CELOS WITH SELF DRAINING BLADE END CAPS THAT KEEPS RAIN WATER AWAY
