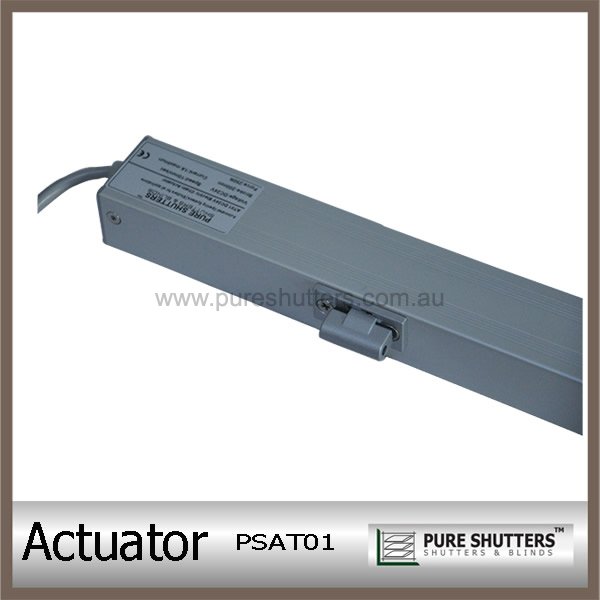

24V 12V Window Electric Mini Motor DC linear actuator

Model Number: PSAT01DC004

CALL NOW & Let it ring FIVE times to get answered... we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details

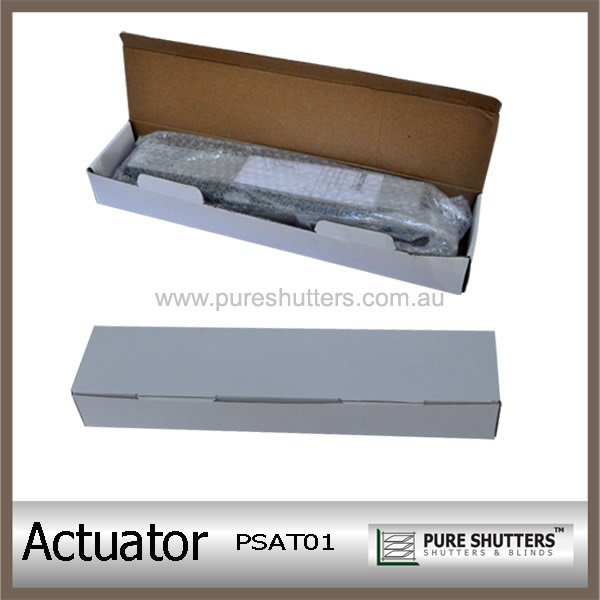

  • Packaging & Shipping
12V 24V Window Electric Mini Motor DC linear actuator
Chain window Actuator,Chain winder Actuator,Window linear actuator,12V actuator,12V actuator electric,12V linear actuator,12V rotary actuators,24V actuator,24V electric motor,Actuators wtih 24v dc motor ,Actuator motor,24V DC power window motor,Electric telescopic actuators,Cheap Actuators,Pneumatic Rotary Actuators,Sliding door actuators,Actuator 12V,Actuator 24V,Actuator Linear,Actuator motor window,Electric actuator,Electric actuator for curtain,Electric Door actuator,Electronic actuator,Glass actuator
Application :
-  Commercial building adjustable blinds window
-  Schools blinds electric
-  Exhibition halls blinds glass
-  Industrial buildings electric window
-  Warehouses louvers aluminum
- aluminum door with Electric motor
- Fire shutter
- Fire smoke exhaust shutter
-Window fire shutters
-Sound proof shutters
-Motorised Shutters windows
- Window winder
- Metal shutters
- Home security shutters ,
- Electric shades shutter
- Horizontal Jalousie
Specifications :
Operating Voltage : 24V DC +/- 10% ,
Maximum Operating Current : 0.8A to 1.2A
Reliability tests carried out : 30,000 cycles

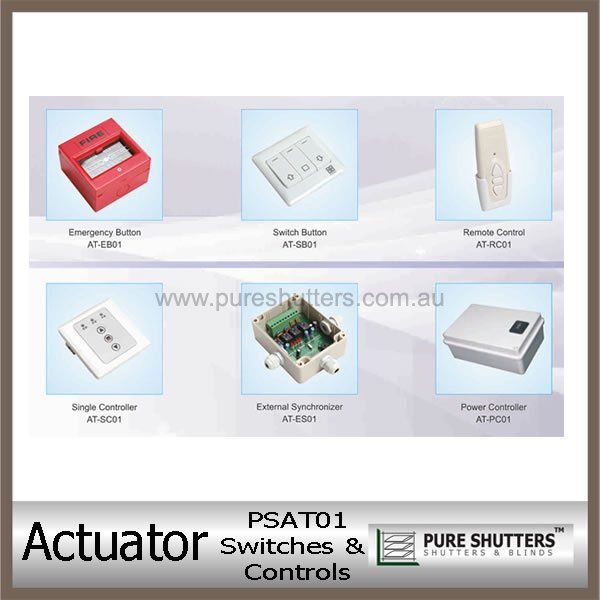

Chain Winder or Chain Actuator accessories :
- Remote control unit
- Emergency button switch
- Emergency push button
- Emergency key
- Emergency stop button
- Alarm button
- Wall switch
- Single controller
- Motor control unit
- Power controller
- External synchroniser
- Electronic switch buton
- Timer and other custom made controls

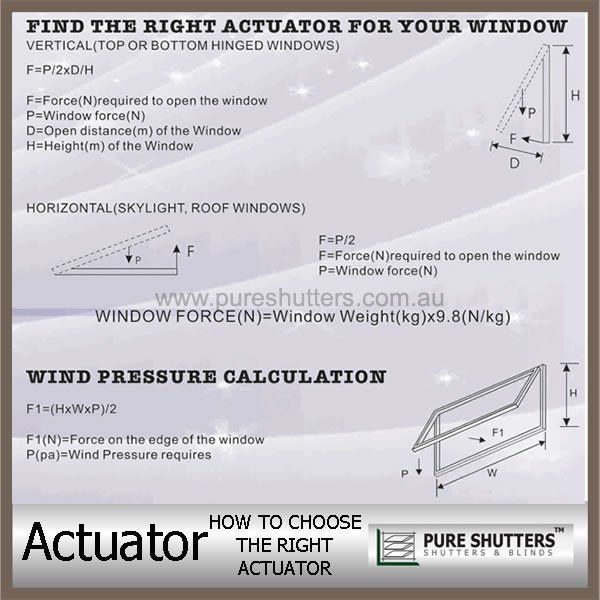

How to choose the right window actuator


  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: PSAT01DC004
  • Product Name: Window motor 24V linear actuator for glass
  • Operating Voltage: DC 24V Electric motor drive
  • Maximum Operating Current: 0.4A to 1.2A
  • Force: 250N
  • Stroke distance: 50 to 300mm
  • Speed: 10mm/sec
  • Ambient temperature: -20 to +75 Degrees Celcius
  • Accessories: Crank arm,Torque arm and connectors
  • Color: Natural Anodise or custom made colors
  • Actuator diameter: 36mm minimum or custom made sizes
